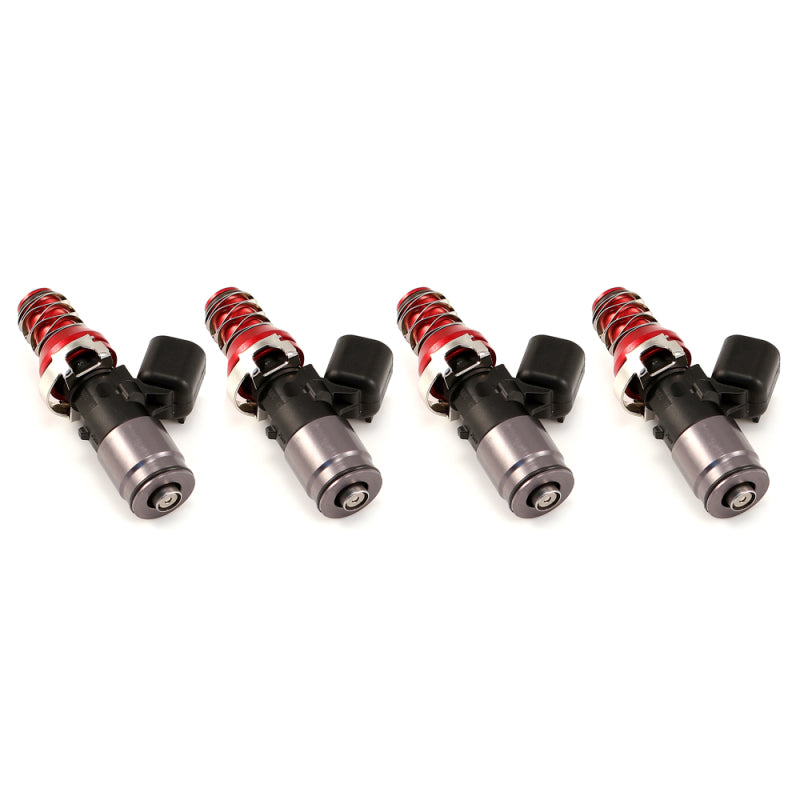

Injector Dynamics Fuel Injectors 1750XDS - Subaru Models (inc. 2002-2014 WRX / 2007+ STI)

ID 1750-XDS

The Best Just Got Better!
The ID1750 is the successor to the ID1700, featuring numerous improvements.

Compared to the 1700, the 1750 offers:

• Higher Dynamic Flow Rate With no Increase in Minimum Fuel Mass.
• Better Cylinder to Cylinder Balance at Low Pulsewidths.
• Improved Pressure Sensitivity

All while retaining the same “Compatible with everything but dirt” corrosion resistance that made the ID1700 famous.

Basic Specifications

Nominal Flow Rate - 1728cc/min @ 3.0 Bar (43.5 psi), Using E10 Emissions Certification Fuel at 49 Degrees C (120F)
Maximum Differential Fuel Pressure - 7.0 Bar (101.5 psi)
Fuel Compatibility - Compatible with Methanol/Ethanol/MTBE/Nitromethane/All Known Hydrocarbon Fuels.
Electrical Connector - USCAR
